Hardware

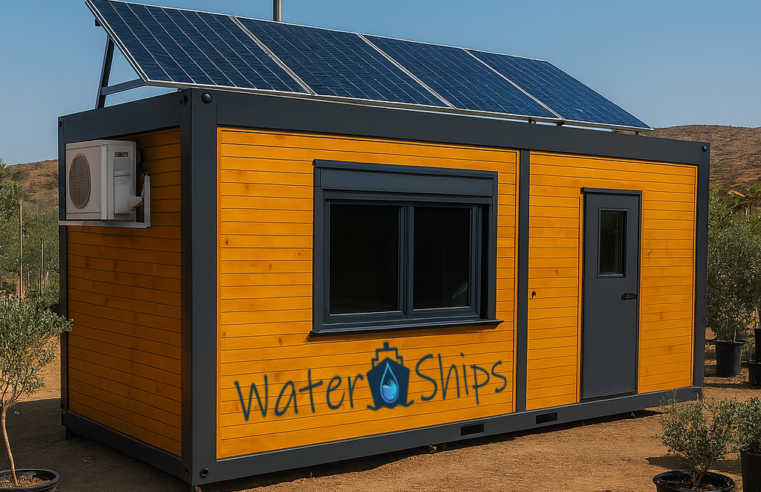

Control container (mobile home) comprising:
solar panels,
air conditioning,
PC server, printer,
webcam,
batteries,
power inverter,
Starlink satellite,
emergency generator,
Seahorse Manager software,
Phantom 4 drone

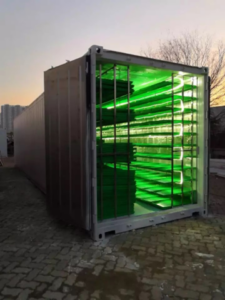

SAFE GERMINATIONCONTAINER
The SAP mat creates a stable water reservoir around each seed, ensuring uniform and continuous absorption.
Ultra-pure water (standardized water) maximizes the SAP’s absorption capacity, preventing the loss of effectiveness caused by ions present in groundwater.
The marine fertilizer provides phytohormones, osmoprotectants, and trace elements that accelerate emergence and enhance tolerance to water stress.
This combination drastically reduces early mortality, the leading cause of failure in reforestation projects.

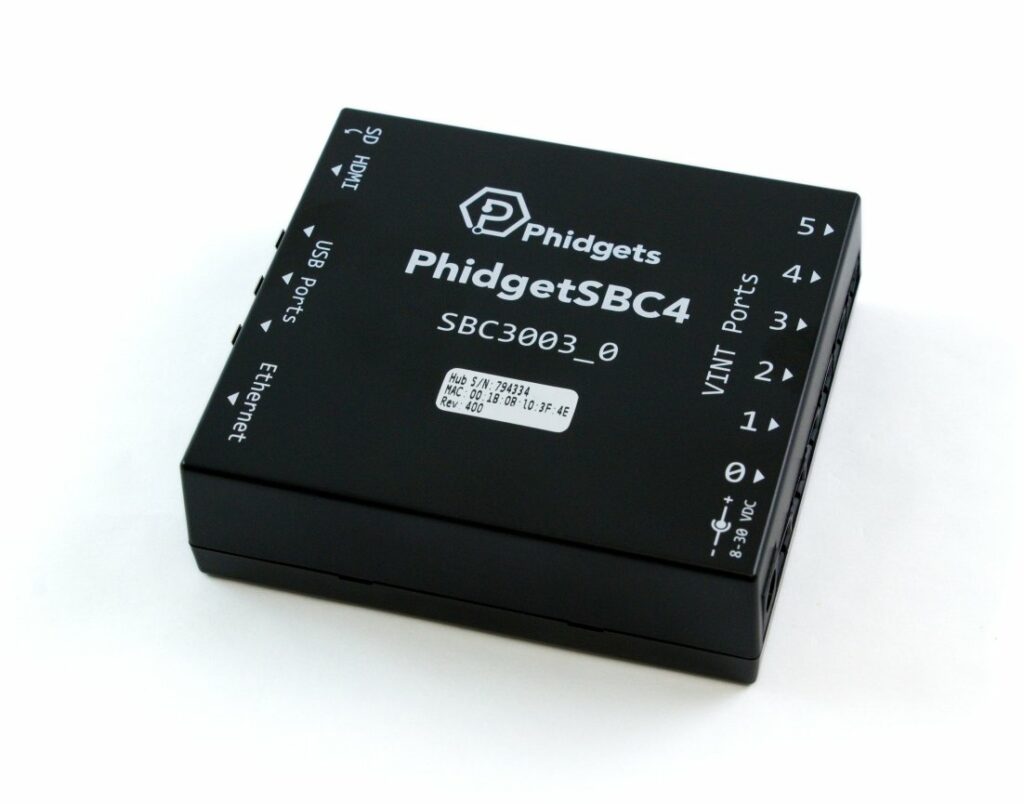

PhidgetSBC4
This single-board computer running Debian is ideal for standalone Phidget systems. It features a built-in six port VINT Hub
The Phidget SBC4 is a Single Board Computer with six integrated VINT ports. VINT Ports can be used in one of four ways: Communicating with an intelligent VINT Device, reading a 0-5V Voltage or ratiometric sensor, acting as a digital output, or reading switches as a digital input.
The SBC4 is an embedded computer that runs Debian GNU/Linux. It’s useful for long-running Phidgets applications or projects that need to be more portable.
You can connect a keyboard and monitor to work directly on the Phidget SBC using the pre-installed Linux terminal, or you can use an external computer to set up and run custom applications through the SBC’s web interface. You can even use the SBC4 as a remote server, accessing Phidgets connected to your SBC from programs running on other computers or devices on the network.

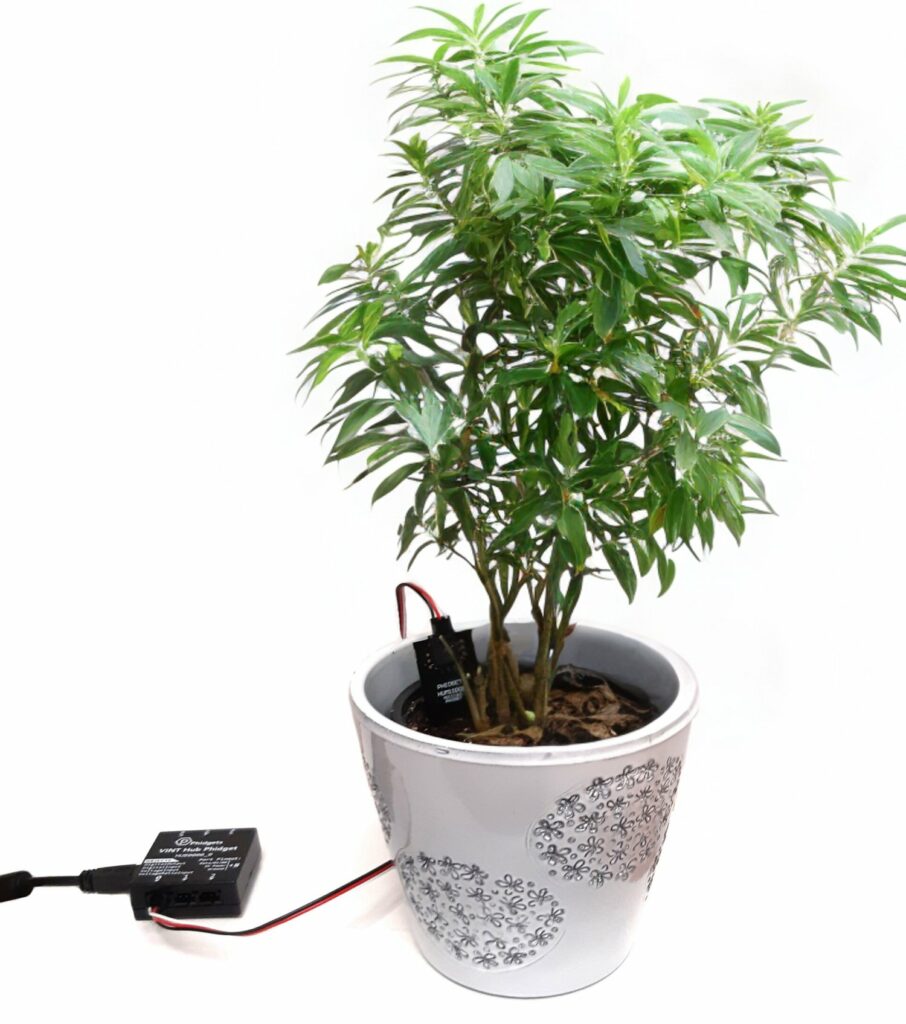

Soil Moisture Sensor
When placed into soil, the HUM1100 measures the moisture levels by monitoring the capacitance between its prongs. It outputs a number between 0.0 and 1.0 depending on the moisture of the soil. This sensor is useful for automated gardening projects and environmental research.
This Phidget connects to your computer through a VINT Hub.
Features
- Significantly increased durability compared to voltage-based soil moisture sensors
- Monitor the moisture level of your plant’s soil
- Connects directly to a Phidgets VINT Hub
Calibration
Generally, the HUM1100 will output values as follows:
- 0.0 to 0.2 – Dry soil
- 0.2 to 0.5 – Moist soil
- 0.5 to 1.0 – Flooded soil
However, the type of soil being monitored can impact these values and each HUM1100 will have a slightly different response so it is important to test for yourself to determine which value corresponds to your desired soil conditions.

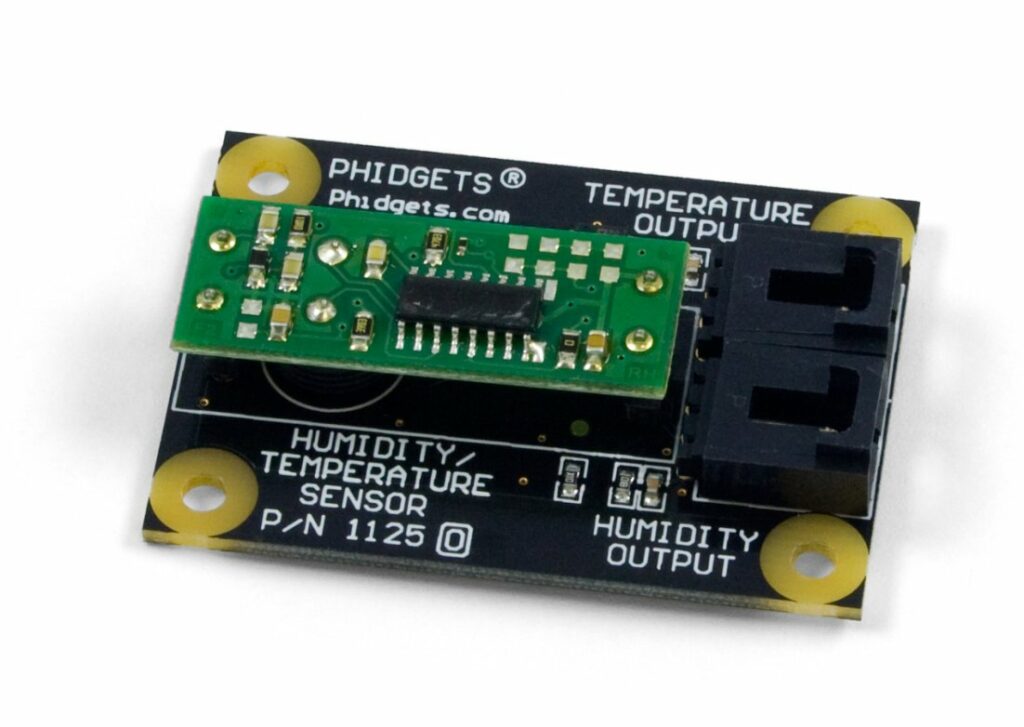

Humidity/Temperature Sensor
The 1125_0 can measure Relative Humidity from 10% to 95% with a typical error of ±2%RH at 55% RH.
It also measures Ambient Temperature in the range of -30°C to +80° C with a typical error of ±0.75°C in the 0°C to 80°C range.
Features
- Measures humidity from 10 to 95% RH
- Measures temperature from -30 to +80 degrees Celsius
- Connects to a Phidgets VINT port or voltage input
- Includes two 60cm Phidget Cables

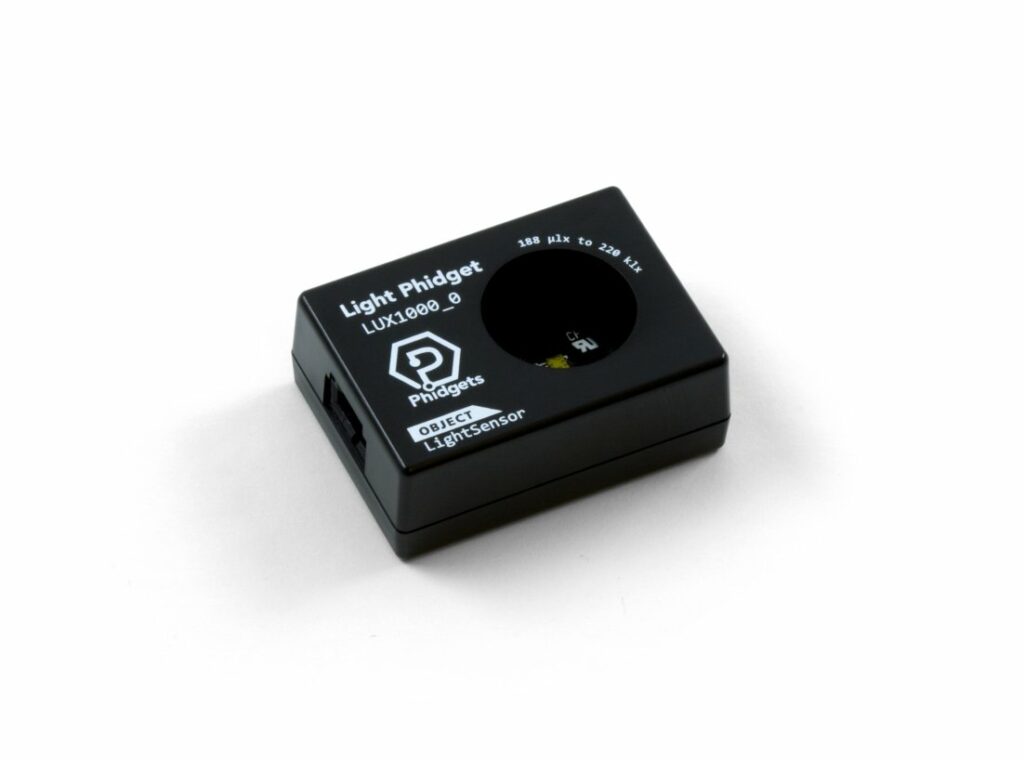

Light Phidget
The LUX1000 measures brightness (illuminance). This Phidget is useful when creating automated systems that need to switch on/off at night or in low-light conditions. This Phidget connects to your computer through a VINT Hub.
Features
- Measurement ranges from 188 microlux (moonless night) to 220,000 lux (direct sunlight)
- Retrieve data as often as every 125 milliseconds

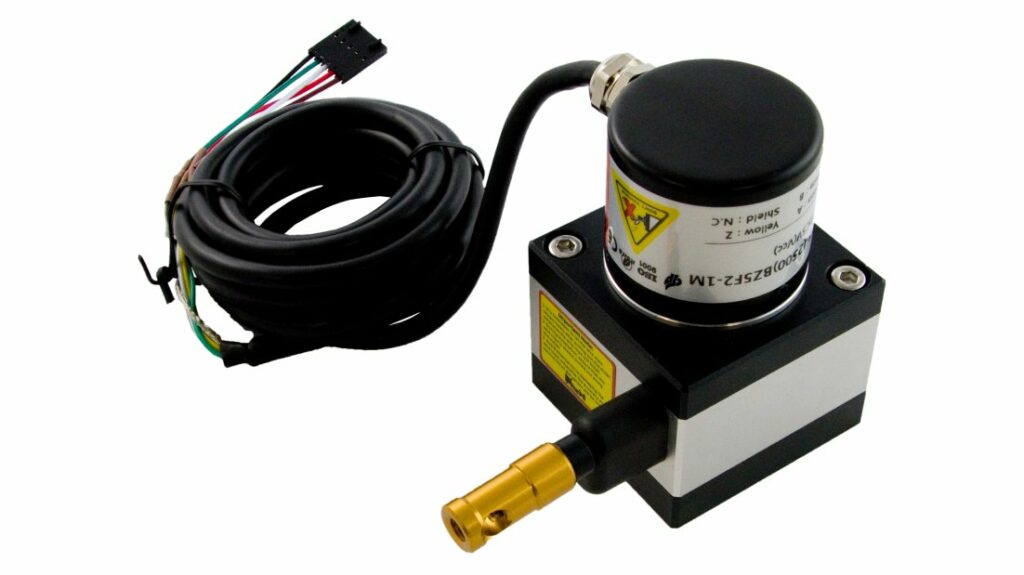

dendrometer sensor
n complex mechanical systems, it is often very difficult to accurately measure the movement of a single part, especially if the linear alignment isn’t guaranteed to be perfect. The draw-wire encoder is a versatile solution to this very problem. When the wire is pulled out, the encoder produces a quadrature signal to describe the change in distance.
Features
- Measure changes as small as 10µm
- Index channel pulses every 10cm, allowing for precise position homing
- Plugs directly into any Phidgets encoder interface
- Spring loaded reel automatically retracts and spools without tangling

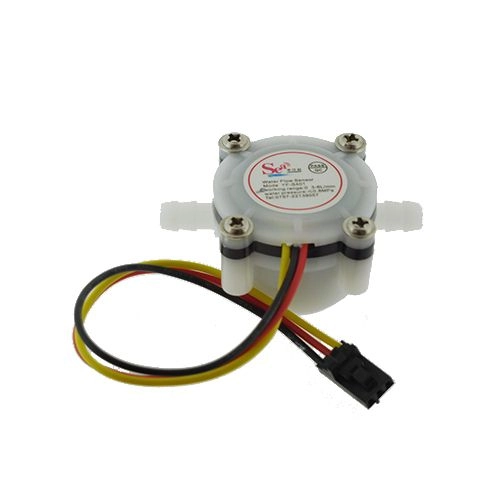

Flow Sensor
0.3 to 6 L/min
This flow sensor consists of a rotor and a Hall-effect sensor. When water flows through the sensor, the rotation of the rotor generates pulses proportional to the flow rate.

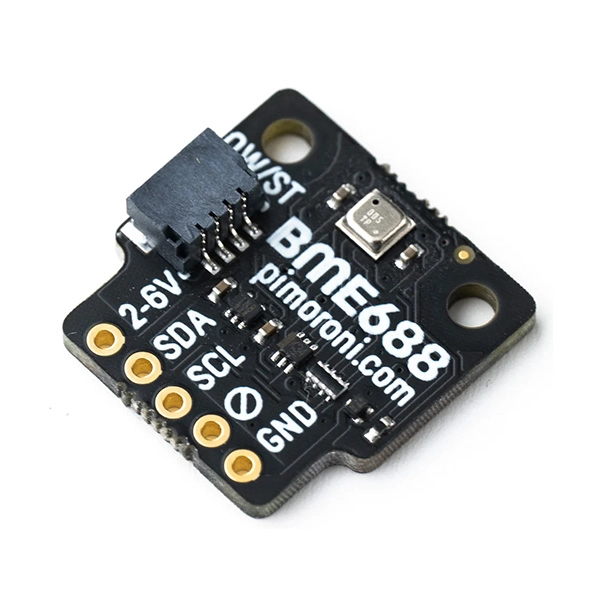

4-in-1 Air Quality Sensor
High-precision BME688 sensor designed to measure air quality, CO2 equivalent, temperature, atmospheric pressure, and humidity.

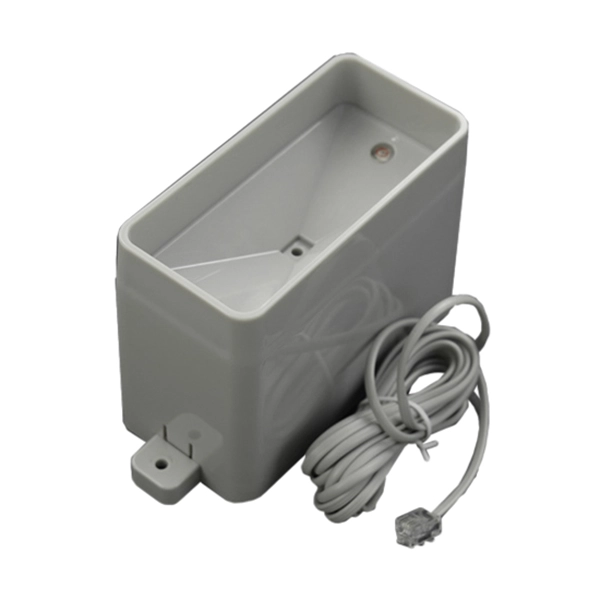

Rain gauge
A tipping-bucket rain gauge that measures the amount (in millimeters) and duration of rainfall.

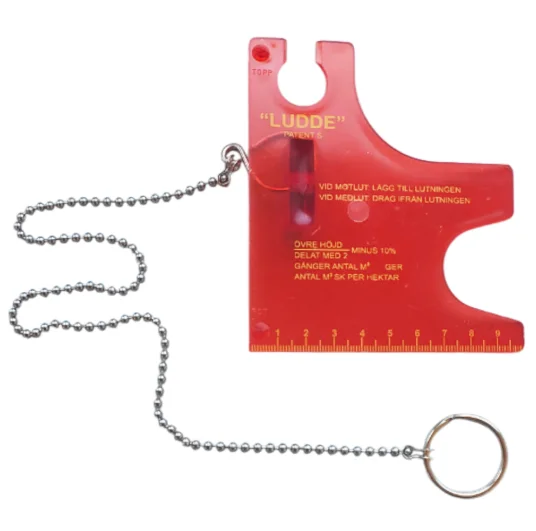

Tree Height Measurement
Simple and effective with the Ludde Simple Dendrometer. This ingenious tool allows you to quickly measure tree heights without complex equipment or a power source. Its proven trigonometric design offers remarkable accuracy for its modest price. Lightweight and compact, it’s easy to take with you anywhere. Its rugged construction is perfectly suited to withstand harsh forest conditions. The ideal tool for foresters seeking a practical and economical solution for their height estimates.

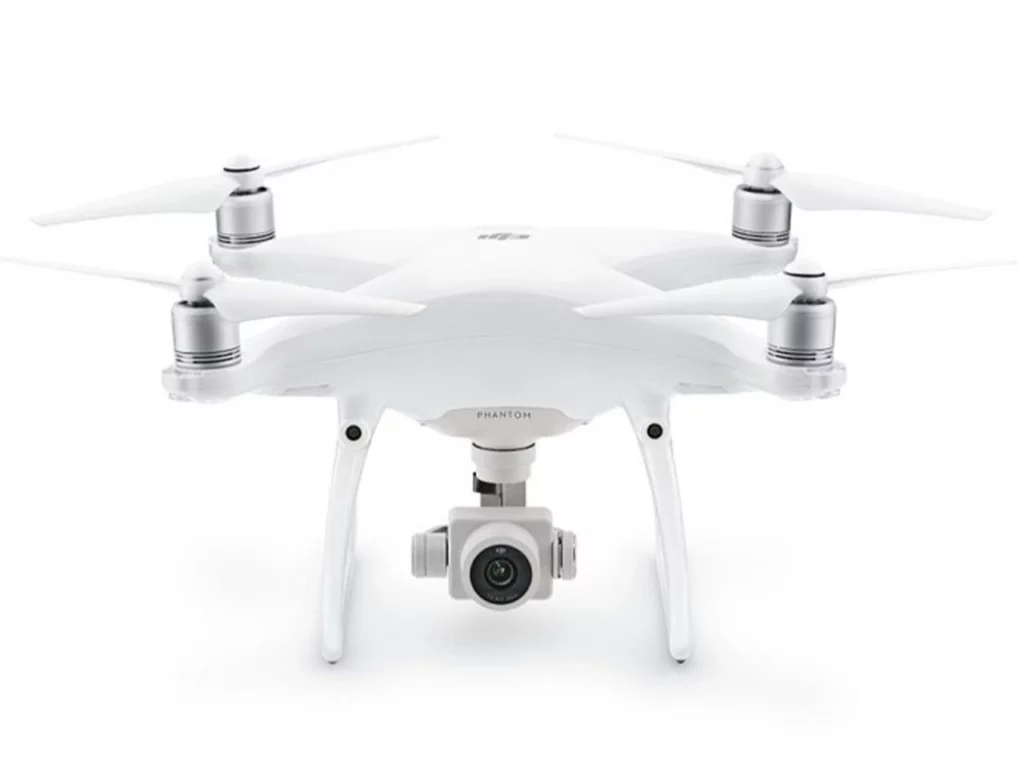

Drone DJI Phantom 4 Pro, caméra 4K Ultra HD,
The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. Equipped with a custom-designed lens featuring eight elements in seven groups, the camera is DJI’s first to feature a mechanical shutter, which eliminates “rolling shutter” distortion that can occur in images of fast-moving objects or during high-speed flight. It is as powerful as many traditional ground-based cameras. The more powerful video processing supports H.264 4K video at 60 frames per second or H.265 4K at 30 frames per second, with a bitrate of 100 Mbps in both cases. Advanced sensors and processors ensure that everything is captured with greater detail and the image data needed for post-production.
Obstacle Avoidance
FlightAutonomy is complemented by a set of high-resolution stereo image sensors located at the rear of the aircraft, which work in conjunction with a pair of sensors at the front and infrared sensors for detecting obstacles on the sides. This integration creates a system capable of detecting obstacles in five directions and avoiding them in four directions. The Phantom 4 Pro is thus protected against multiple obstacles and gives filmmakers the confidence to capture more complex shots.

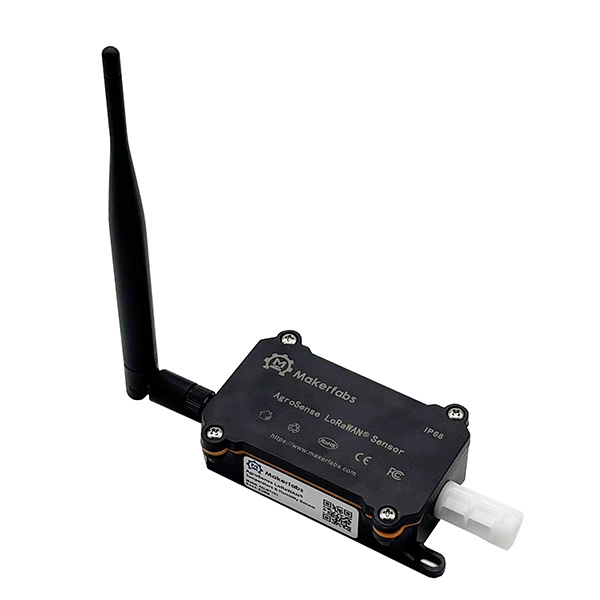

CO2 sensor
Makefabs AgroSense series sensor designed to measure CO2 levels in the atmosphere.
This IP68-rated outdoor sensor operates autonomously and uses a built-in Li-Ion battery.
It connects to the internet via a LoRaWAN gateway.
Comes with registration keys: register these keys on the LoRaWAN server, and it will connect automatically upon power-up.
LoRa technology allows the device to transmit data and achieve extremely long ranges at low data rates. It offers high immunity to interference while minimizing power consumption.
This LoRaWAN CO2 sensor, capable of measuring from 400 to 60,000 ppm, is ideal for monitoring air quality in greenhouses, fields, or agricultural/industrial warehouses.

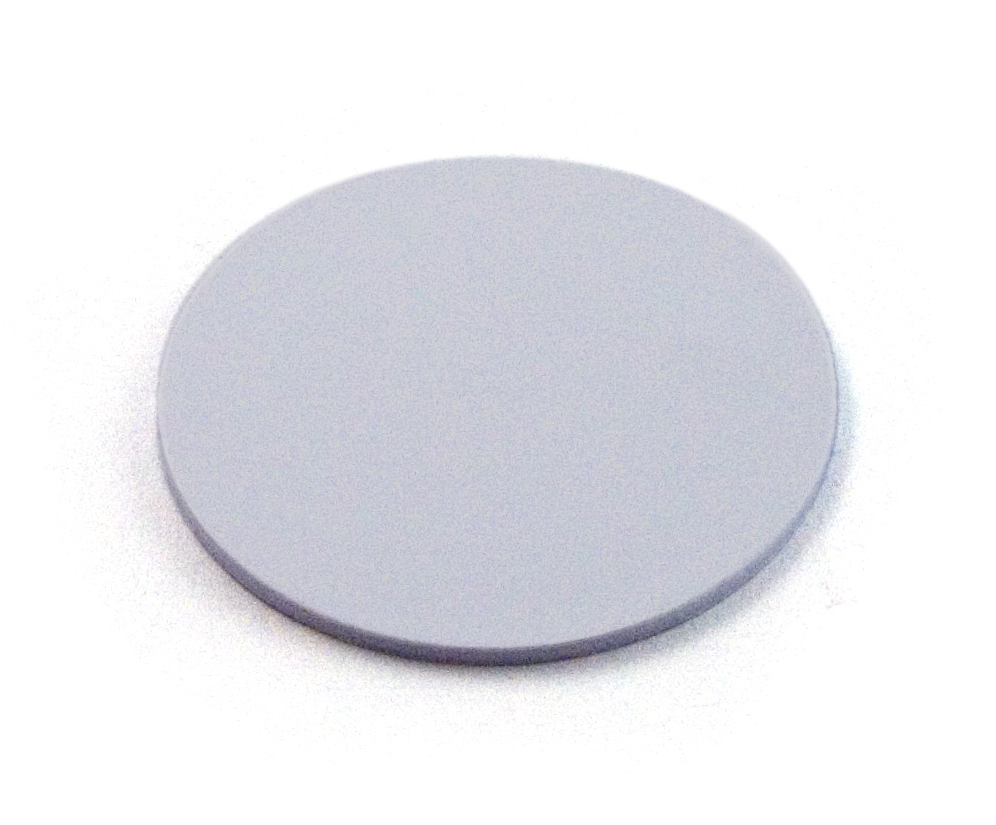

Writable RFID Tag – 25mm Disc
This RFID tag ships blank and must be written using the PhidgetRFID Read-Write or another RFID reader capable of writing to blank tags. Its flat and round design makes it suitable for a variety of applications.
Features
- 25mm disc-style RFID tag
- Blank tag that can be written using a variety of protocols
- Compatible with all Phidget RFID controllers
- T5577 chipset

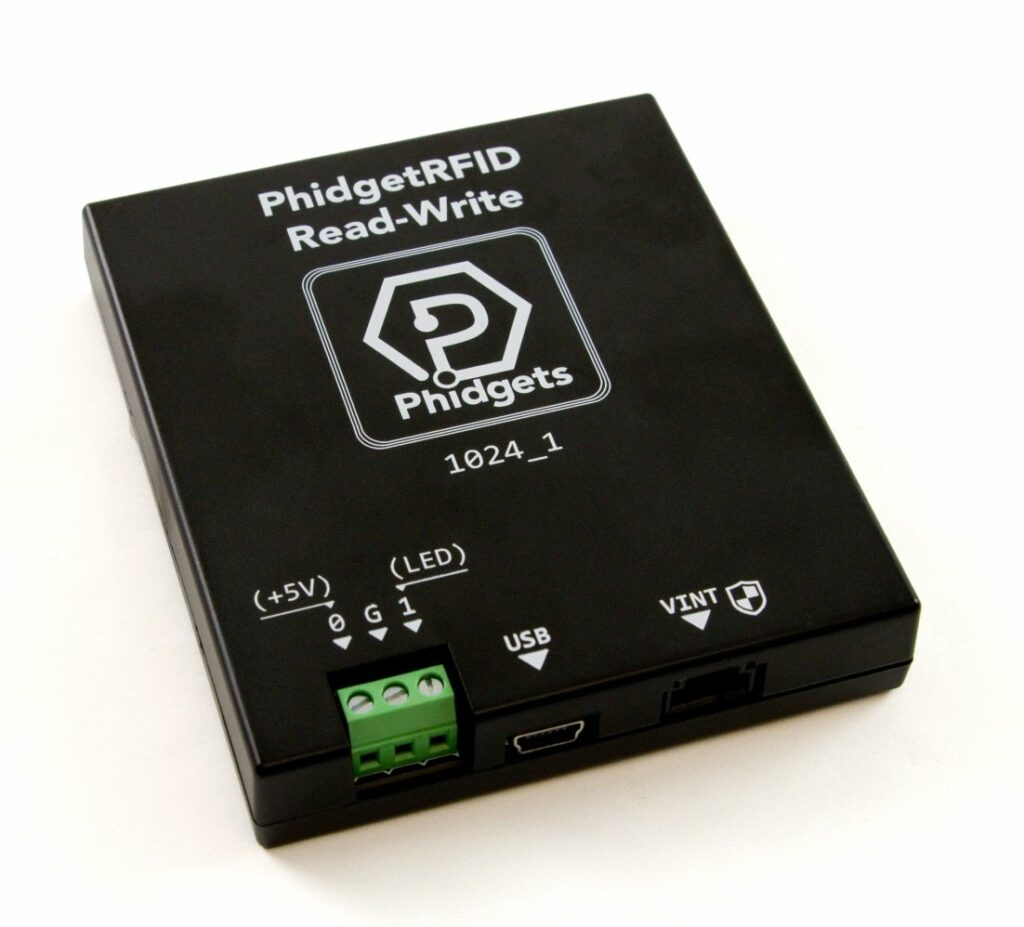

PhidgetRFID Read-Write
The PhidgetRFID Read-Write is an RFID (Radio Frequency Identification) interface that enables both reading and writing of low-frequency RFID tags. It also has two digital outputs and a programmable indicator LED.
Features
- Works with popular protocols like EM4100, ISO11785 FDX-B, HID 26-bit, Generic HID, and PhidgetTAG
- Has two digital outputs (5V and LED) and one programmable LED
- New design offers improved electrical immunity
- Connects to your system through USB or VINT

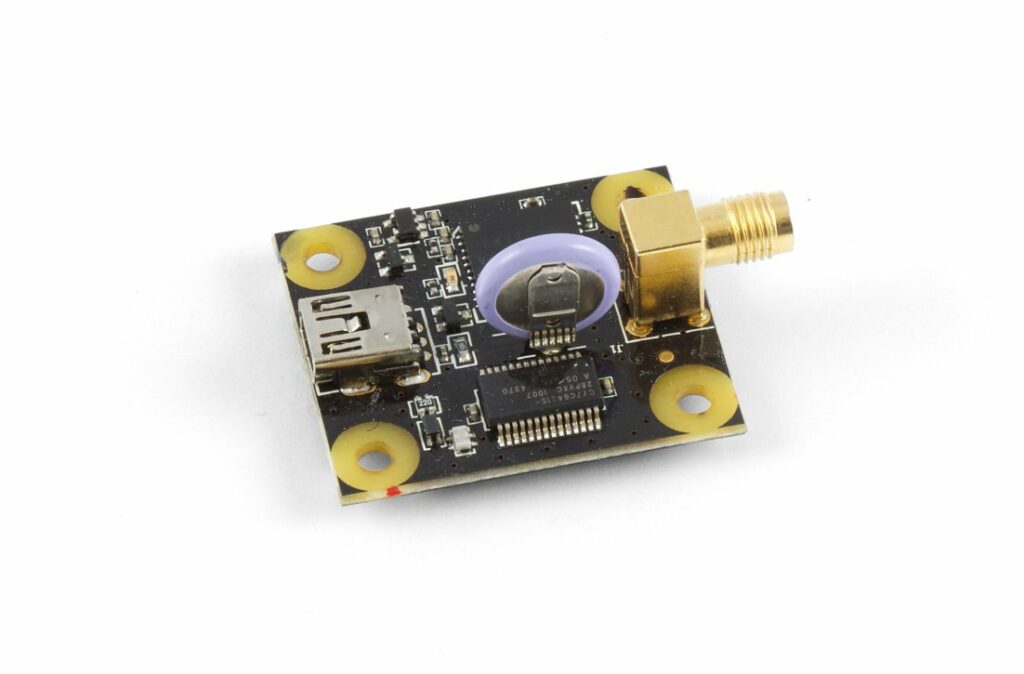

PhidgetGPS
The PhidgetGPS provides the longitude and latitude of the board’s position in signed decimal degree format. The position accuracy (best case) is 2.5m CEP (Circular Error of Probability).
The PhidgetGPS also provides altitude, heading, and velocity, as well as the time and date. It will also let you know when it has a satellite fix.
The PhidgetGPS has a 3V rechargeable lithium battery to provide “hot starts” by remembering its previous positions. With a live battery, the PhidgetGPS can perform a signal re-acquisition in less than 1 second. The battery provides up to 1 month of operation before having to be recharged. Recharging an empty battery takes 24 hours.
Features
- Get GPS position in latitude, longitude and heading delivered to your program
- Altitude, velocity and date/time also available
- Rechargable battery enables quick signal re-acquisition
- Magnet mount GPS antenna and mounting hardware included
